Providing practical production solutions for the Meat Industry over the past 35 years, IBEX delivers a best in class meat removal trimmer, THE EZY2 TRIM SYSTEM – the complete system for meat recovery and fat trimming, which offers benefits of increased yields, better profits, improved safety, and improved product appearance.
Available in both Electric and Pneumatic versions the advantages include:
Enhanced system with high power and high speed
Increased yields and Blade performance
Improved Design
New modular head design to tackle all trimming applications
Simple and safer to use

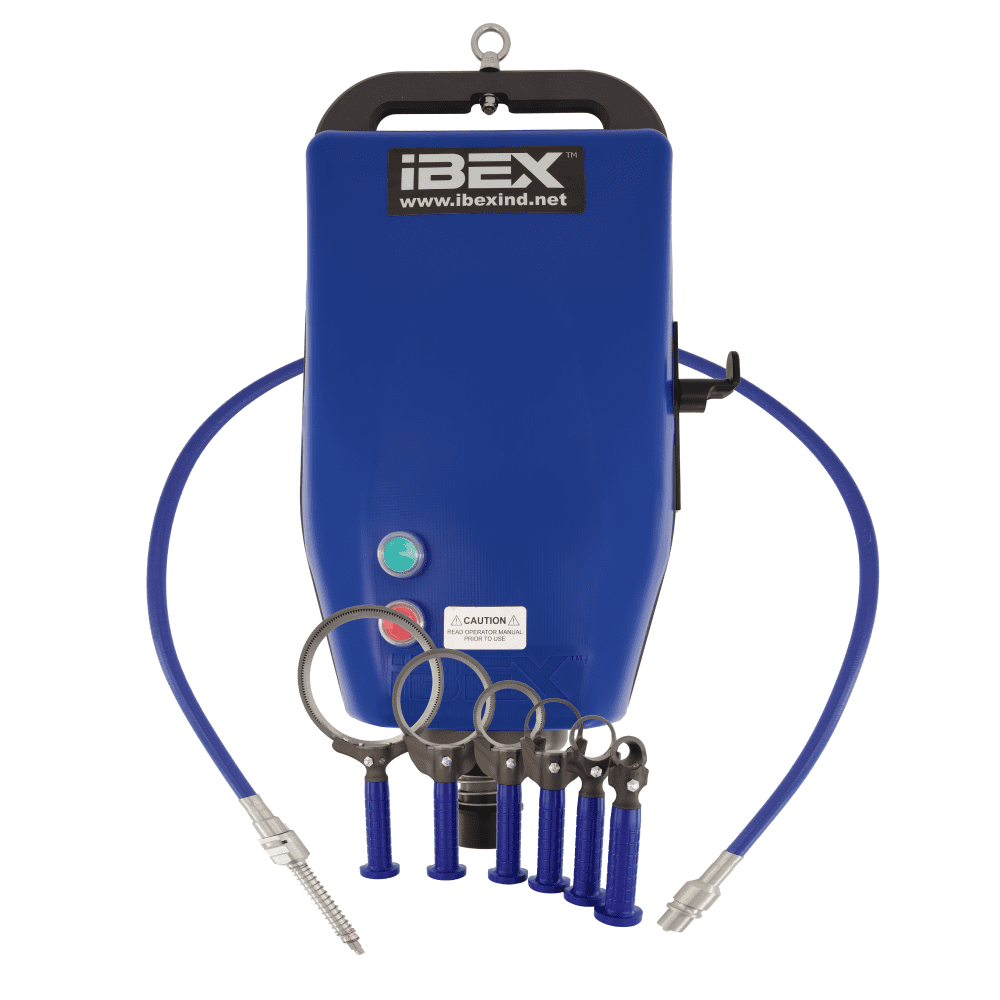

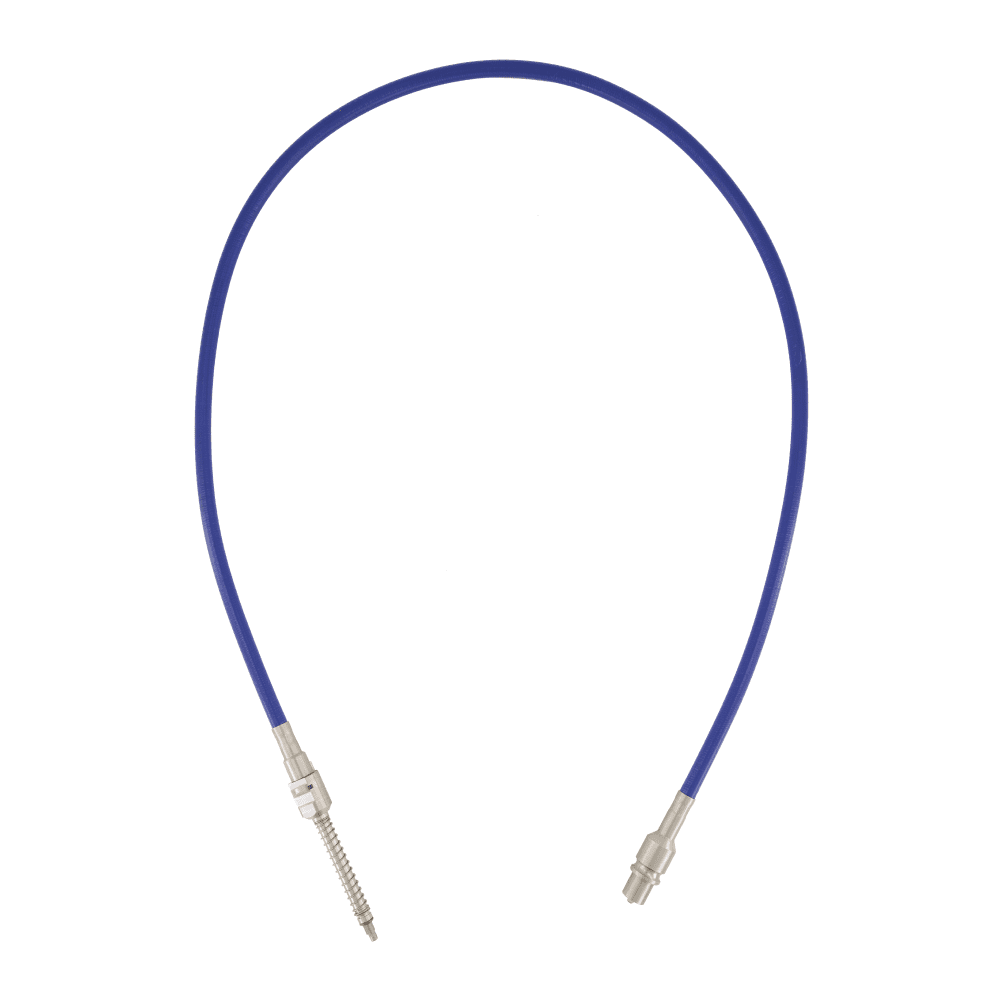

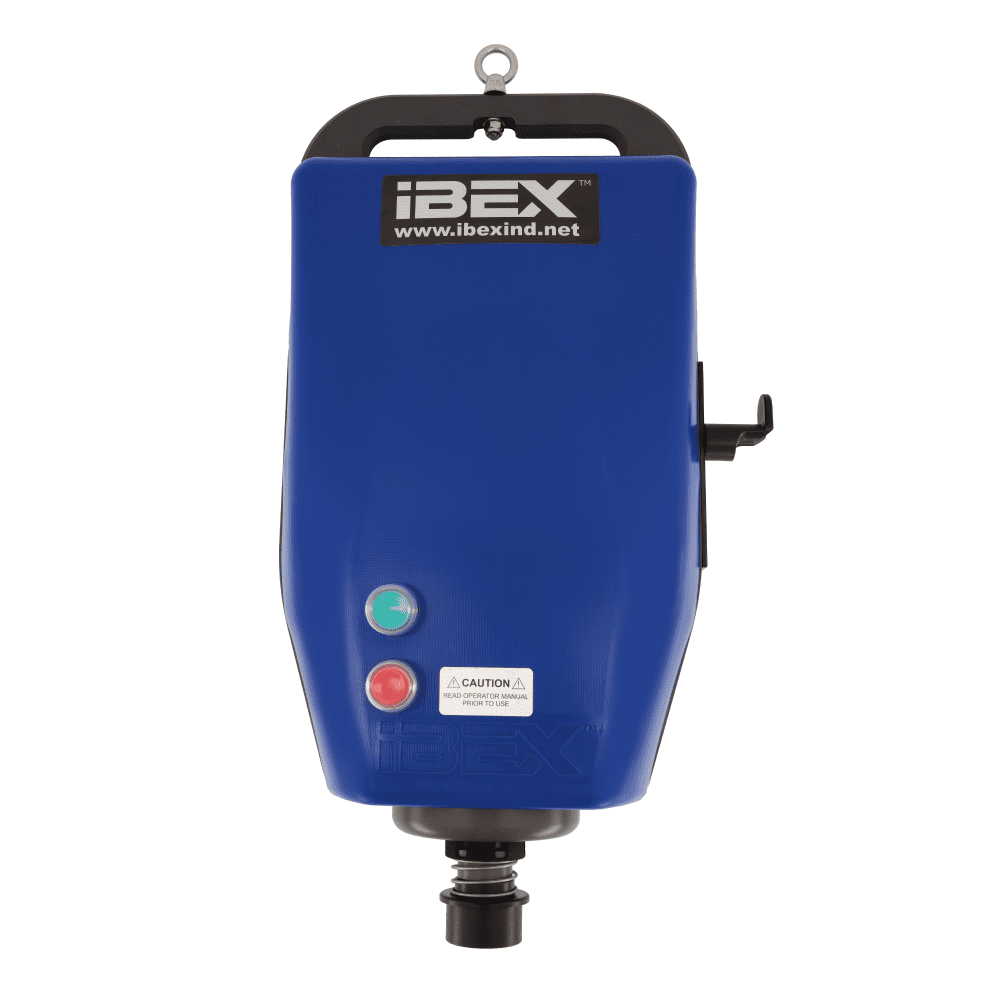

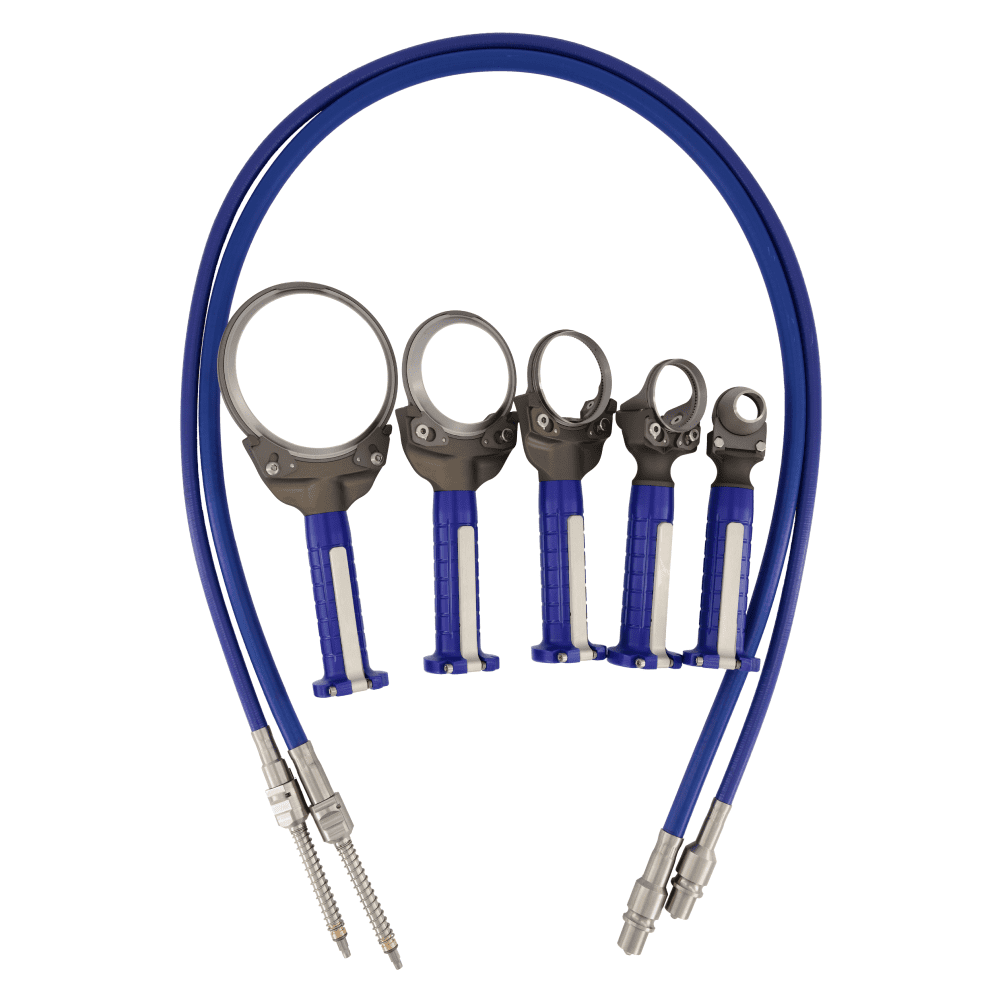

The IBEX EZY2 TRIM Electric System is engineered with durable, robust components to deliver superior performance with low maintenance costs.

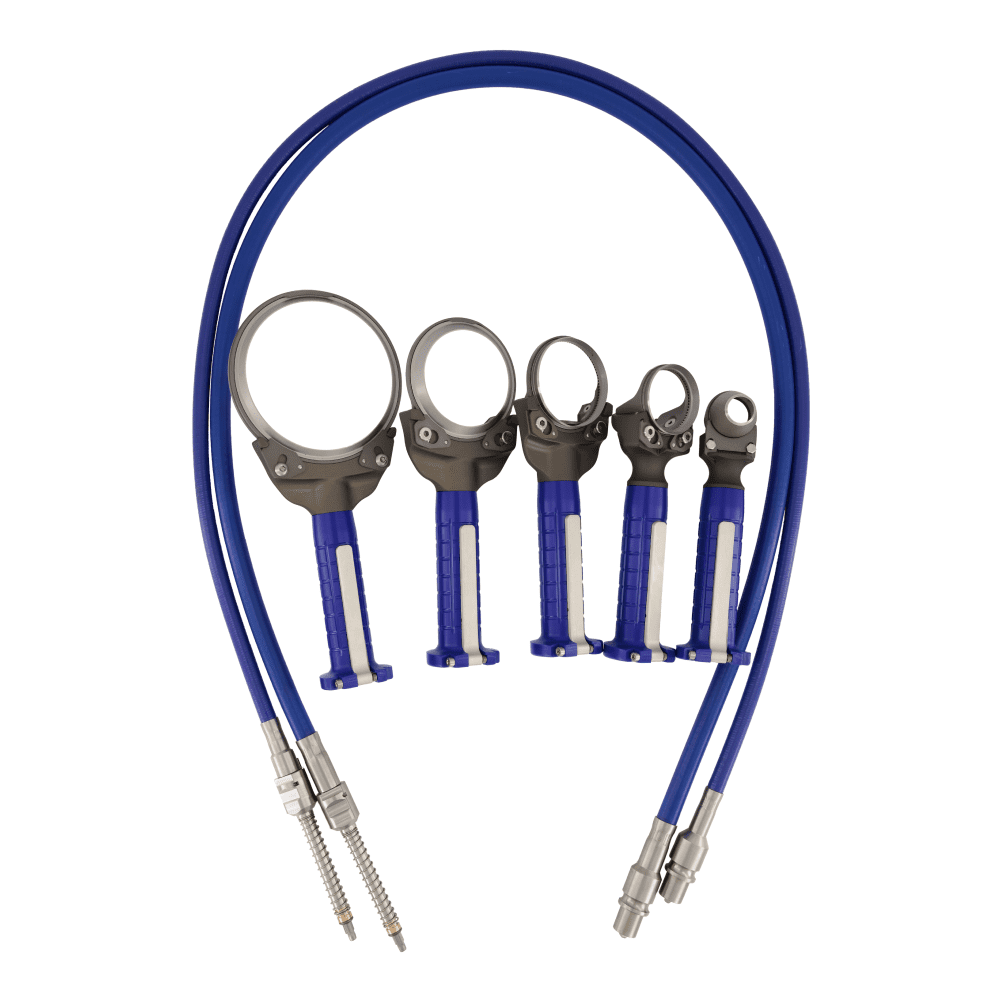

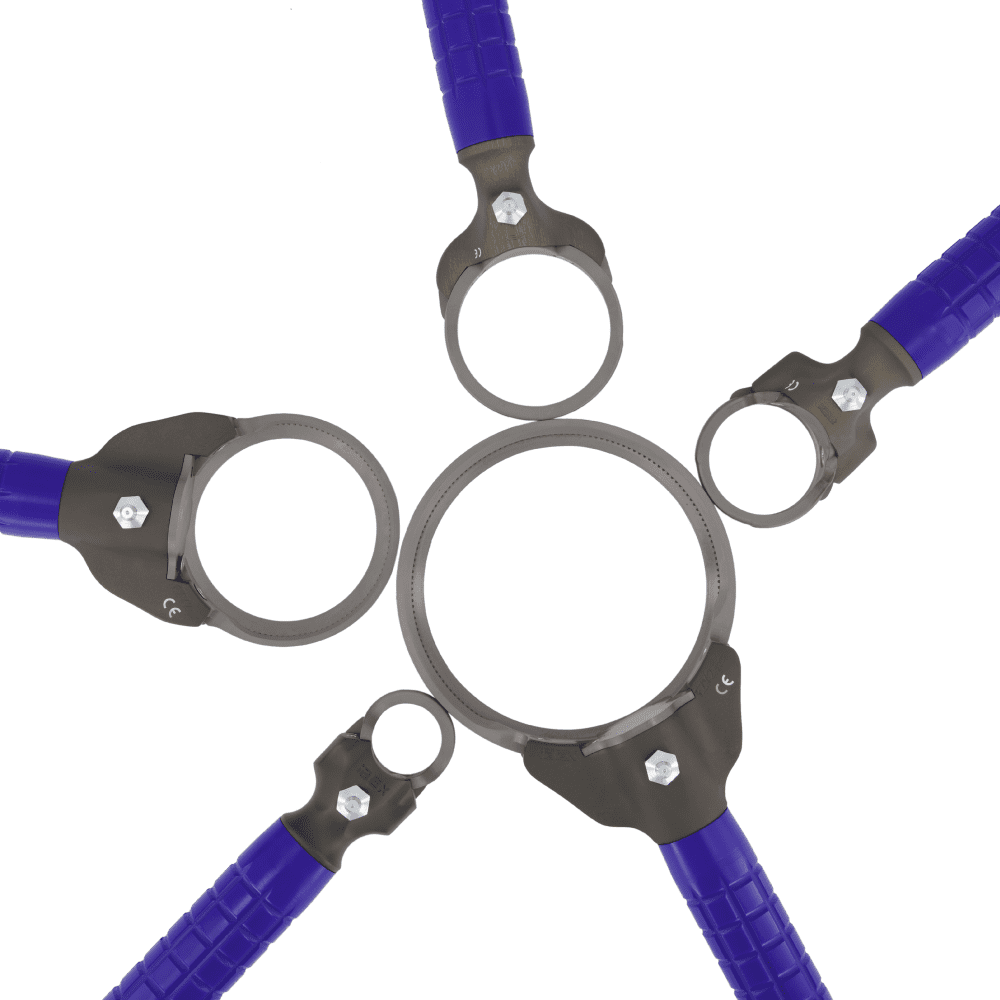

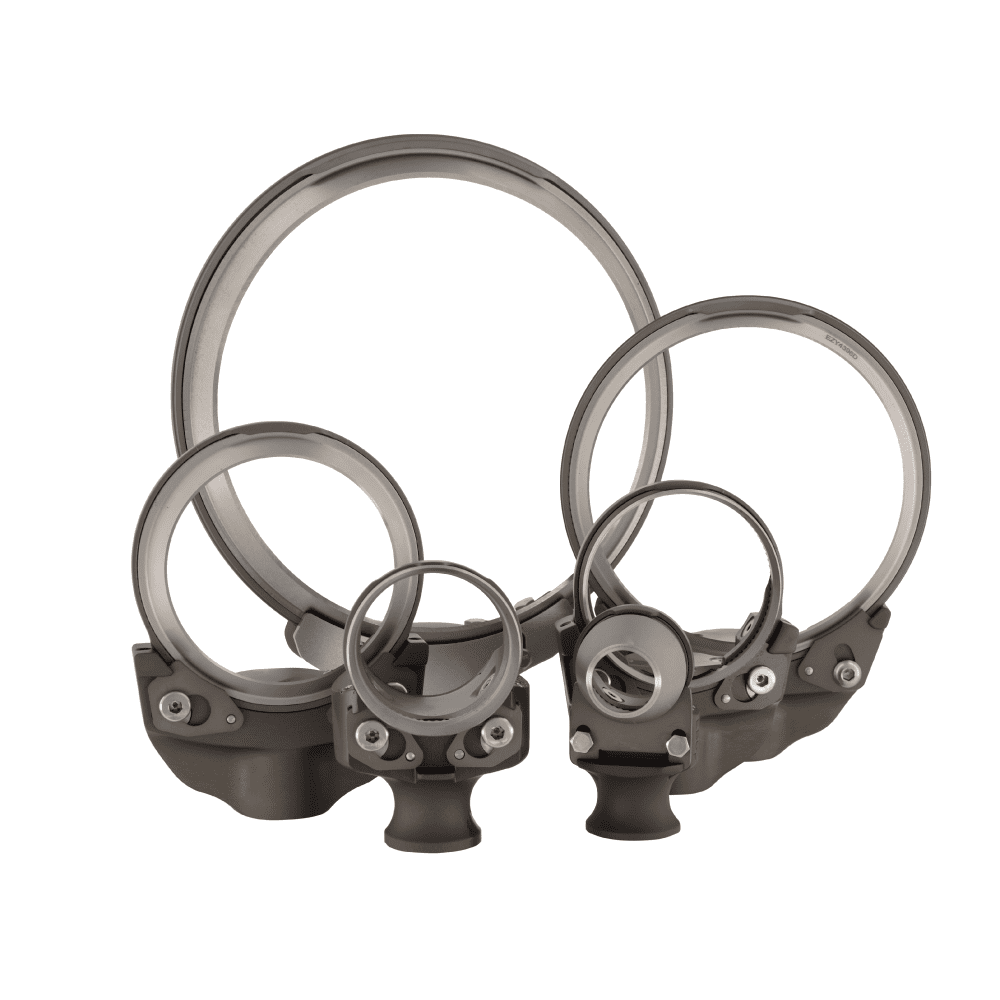

The EZY2 TRIM Electric System has a comprehensive range of Trimmer Heads for meat recovery and fat trimming. This offers benefits of increased productivity & yields, better profits, improved safety and product appearance.

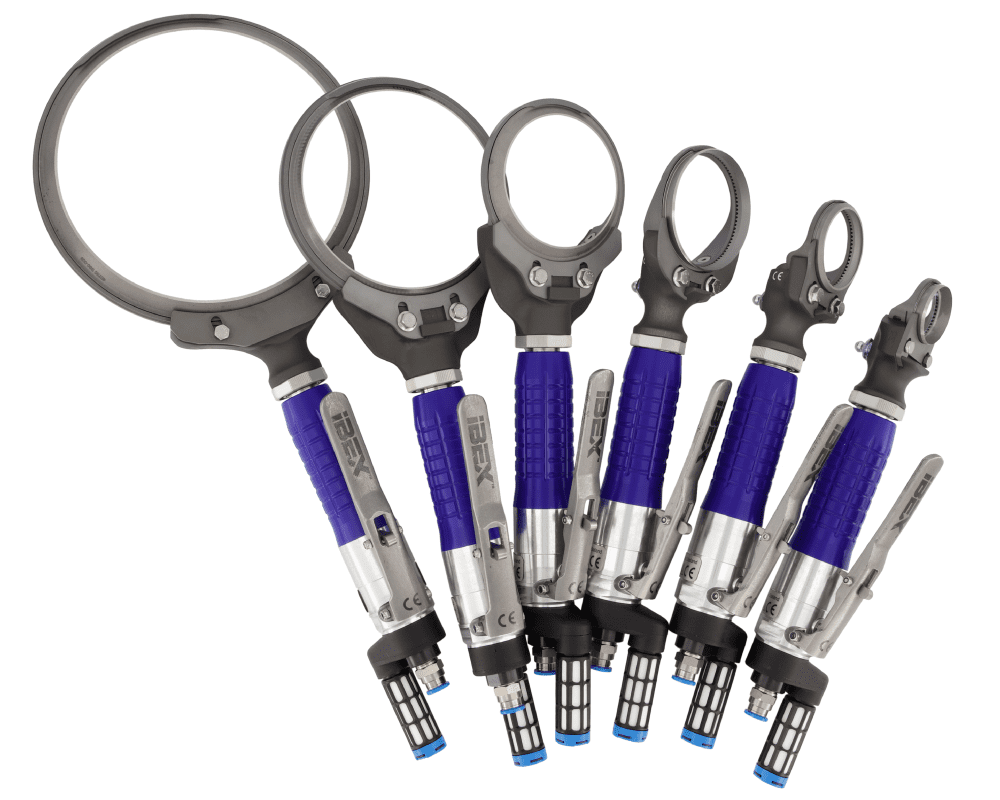

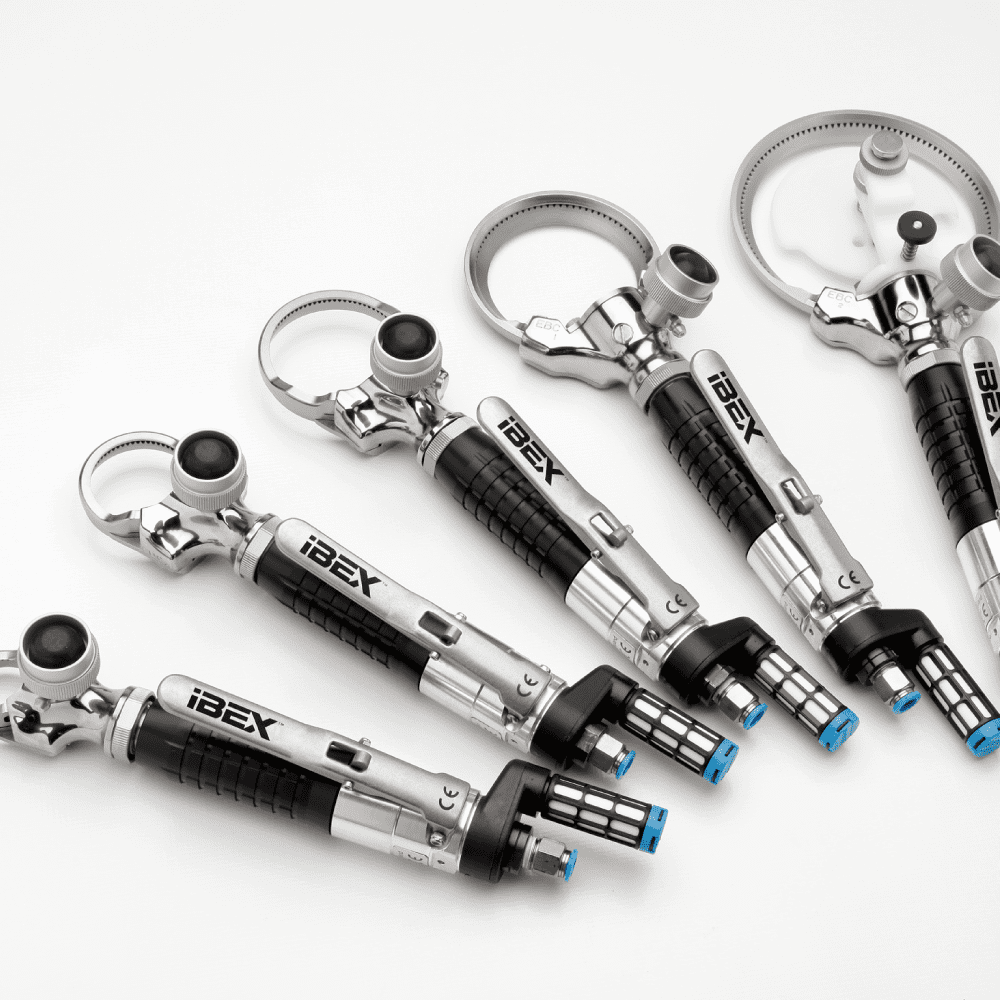

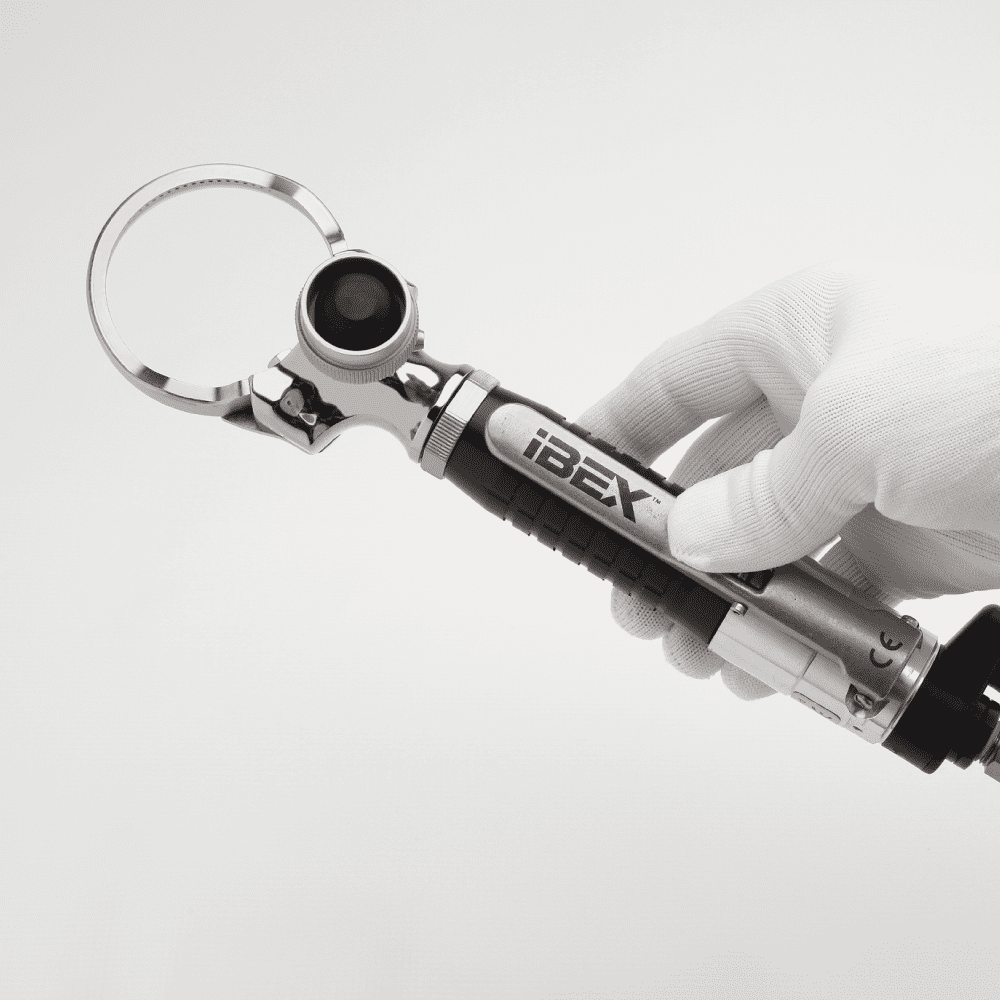

In addition to the electric system trimmer, Ibex also presents the IBEX EZY2 TRIM Pneumatic – the ultimate in Pneumatic Trimming systems on the market. At the heart of the Pneumatic Trimming System is the IBEX Pneumatic motor; precision built to use air efficiently and deliver high levels of power and speed.
The distinct advantage of the EZY2 TRIM Pneumatic system is its high speed coupled with the power enabling it to be used in numerous applications to improve yields.

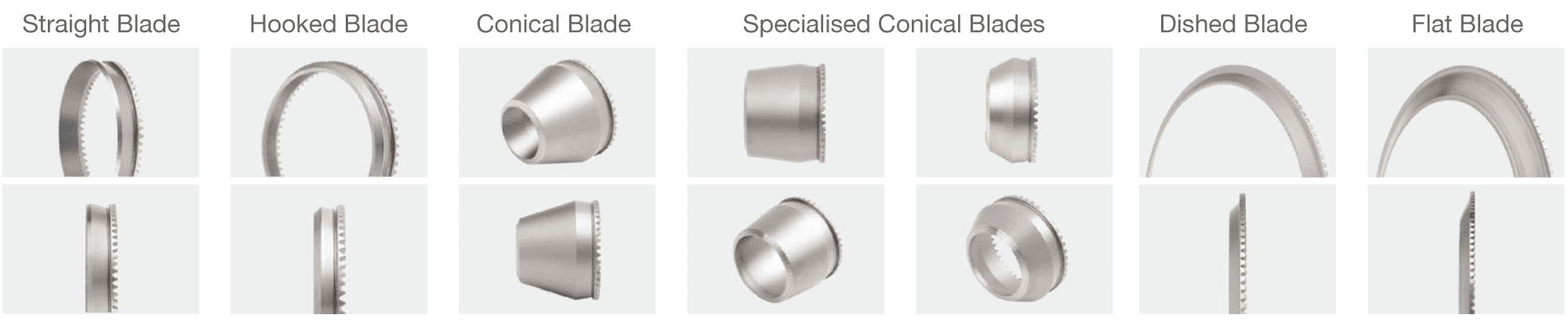

In addition to standard carbon steel blades, IBEX Trimmer blades are available in the knife quality stainless steel. This means the blades stay sharp for a longer time, increasing production and reducing downtime for honing to maintain an edge.
| 32mm | 52mm | 69mm | 90mm | 128mm | 180mm | |
| Hooked Blade |
 |
|
|
| ||
| Straight |
|
|
|
| ||
| Dished Blade |
|
|
| |||
| Flat Blade |
| |||||
| Conical Blade |
|
The following guide is an indication of which tools and blade types should be used for specific applications.
Beef Applications| 32mm | 52mm | 69mm | 90mm | 128mm | 180mm | |
| Small Bone Trimming | Straight | Straight |
 |
|
|
|
| Hot Fat Trimming |
|
|
| Dished | Dished | Dished |
| Cold Fat Trimming |
|
|
| Dished | Flat |
|
| Liver De-Spotting | Straight |
|
|
|
|
|
| Beef Heads |
| Straight |
|
|
|
|
| Beef Skirt Removal |
|
|
|
| Dished | Dished |
| External Light Fat Removal |
|
|
| Dished | Dished* |
|
| Ribs | Straight | Straight |
|
|
|
|
| Large Intestines | Straight |
|
|
|
|
|
| Spinal Cord | Conical |
|
|
|
|
|
| Internal Beef Fat Removal - Vacuum Suction |
| Hooked |
|
|
|
|
| Button Bones Removal |
| Straight |
|
|
|
|
| Strip Bones Removal |
| Straight |
|
|
|
|
*= can be used with a depth gauge
Lamb applications| 32mm | 52mm | 69mm | 90mm | 128mm | 180mm | |
| Tenderloin Removal |
| Straight | Straight |
|
|
|
Pork Applications| 32mm | 52mm | 69mm | 90mm | 128mm | 180mm | |
| Small Bone Trimming | Straight | Straight |
|
|
|
|
| Ham De-Fatting |
|
|
|
| Dished* |
|
| Pork Legs D-Fatting |
|
|
|
| Dished |
|
| Rind Patches Removal |
|
|
|
| Dished |
|
| Tenderloin Removal |
|
| Straight | Straight |
|
|
| Removing Pig Eyes | Straight | Straight |
|
|
|
|
| Pig Heads |
| Straight |
|
|
|
|
| Ear Canal Removal |
| Straight |
|
|
|
|
| Pork Neck Bone |
| Straight |
|
|
|
|
| Pork Bellies De-Fatting |
|
|
| Dished | Dished |
|
* = can be used with a depth gauge
Poultry| 32mm | 52mm | 69mm | 90mm | 128mm | 180mm | |
| Chicken Thigh De-Boning |
| Straight |
|
|
|
|
Fish| 32mm | 52mm | 69mm | 90mm | 128mm | 180mm | |
| Slicing Smoked Salmon |
|
|
| Dished* | Dished* |
|
| Light Fish Slicing |
|
|
| Dished* | Dished* |
|
| Filleting |
|
|
| Dished | Dished |
|
| Shaping |
|
|
| Dished* | Dished* |
|
| Fat Removal on Salmon |
|
|
| Dished* | Dished* |
|
| Removal of Dark Meat (E.g. Tuna) |
|
|
| Dished | Dished |
|
| Removal of Bloodline in Salmon | Straight |
|
|
|
|
|
* = can be used with a depth gauge

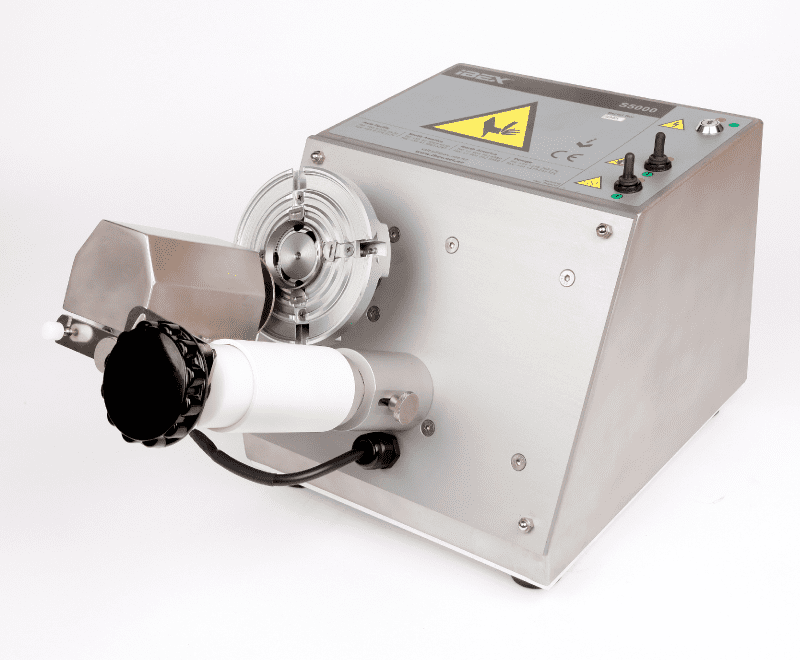

The S5000 is the superior alternative to current hand stoning techniques for sharpening circular trimmer Blades. With total Blade control during the grinding process, the S5000 provides smooth consistent sharpening, resulting in a razor-sharp edge.
With a single magnetic Blade holder, which accommodates all Blade sizes*, the S5000 is an easy to operate, low maintenance sharpening tool.

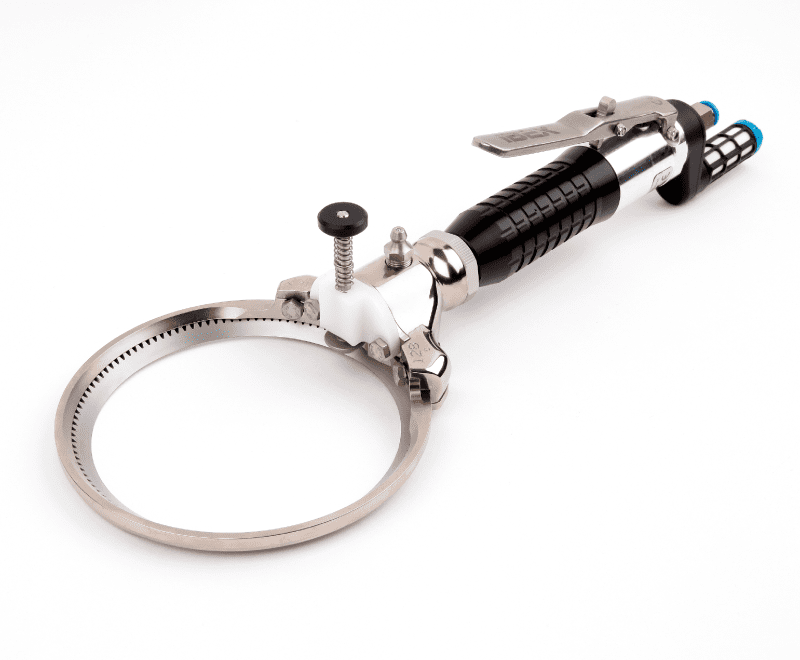

Maintain razor-sharp edge during processing with the Trimmer Head Honing Device. With the push of the button the device removes the rolled edge on the inside so the Blade is back to optimum performance.
The Honing Device is available as an option on the 90, 128 and 180 Trimmer Heads.

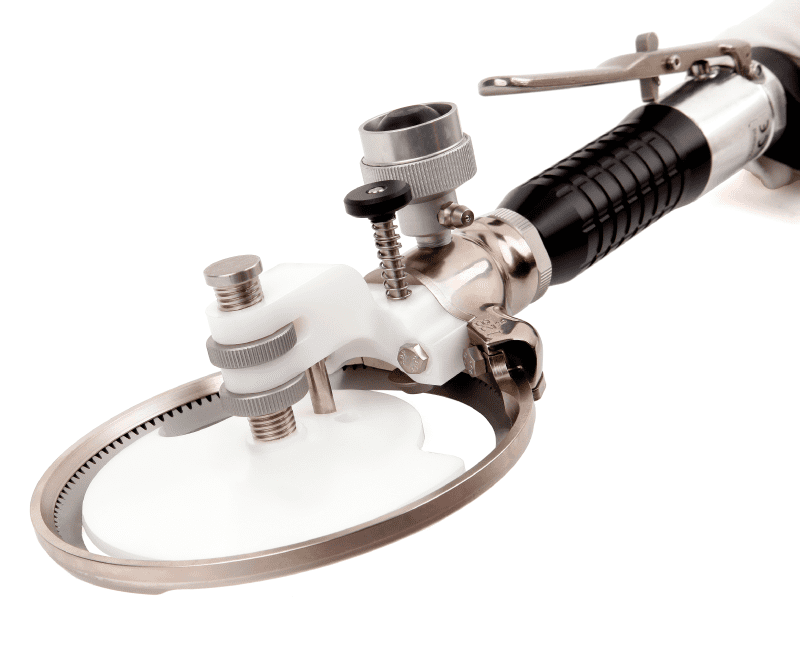

Maximise your yields with a choice of Depth Gauges for the 90 and 128 Trimmer Heads for precision cutting. Trim just the right amount of product every time whether the application is removing fat or skin.
The Depth Gauges are also available with
