Exclusive to Cutting Edge – Nock Poultry Skinners are perfect for a wide range of high volume poultry skinning, delivering precise results and a flawless end product.
The Nock Poultry Skinners allow for a high through-put, increasing productivity and poultry-skinning efficiency. Utilising a specialised skinning blade paired with a spring suspended blade holder and pressure roller to firmly hold the product in place, these machines deliver excellent quality results every time.
The machines feature a a height-adjustable foot switch bar and infeed table, which variable processing speed which simplifies processing, improving safety and end-product quality.
To ensure your skinning operation remains continuously efficient, they are manufactured in high-quality stainless steel and includes a pressurised air-jet cleaning system to offer maximum hygiene.
The machine is completed with NOCK’s exclusive Power Plate technology. This innovative construction allows the removal of the conveyor in seconds without specialised tools, making cleaning, servicing and general maintenance of the machine fast and simple for any operator.
25 YEARS OF ENGINEERING EXCELLENCE & SUPERB QUALITY
EXPERTLY DESIGNED TO BE SIMPLY EFFICIENT & SAFE
MODULAR & COST-EFFECTIVE POWER PLATE® TECHNOLOGY
PRECISION SKINNING WITH EXCELLENT QUALITY RESULTS
| Models | Cutting Width | Cutting Speed | Overall Dimension | Weight | Compressed Air Connection |
|---|---|---|---|---|---|
|

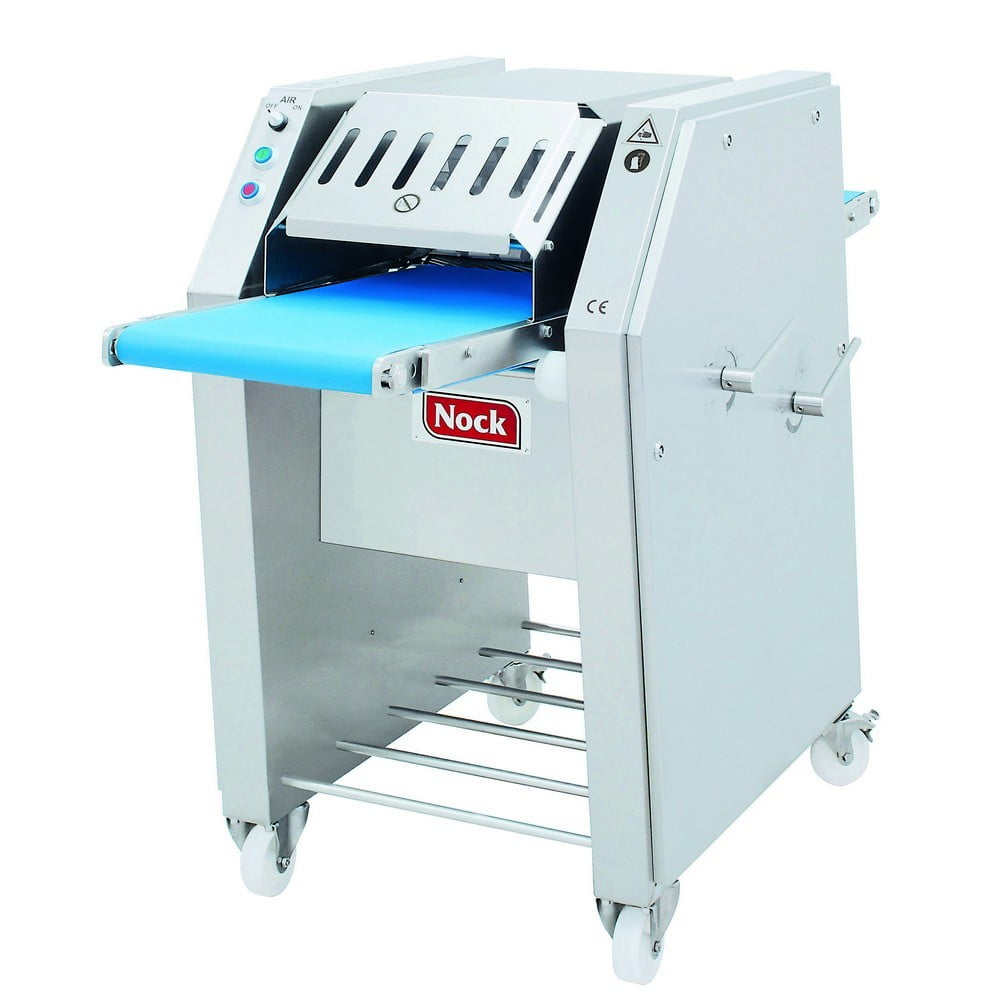

Nock Cortex CBP 496
|
430 mm / 600 mm |
24 m/min |
W x H x D 800 x 1190 x 1860 mm / 965 x 1190 x 2280 mm |
240 kg / 300 kg |
5 < p < 10 bar plug coupling DN 7.2 (G1/4“ external) |
|

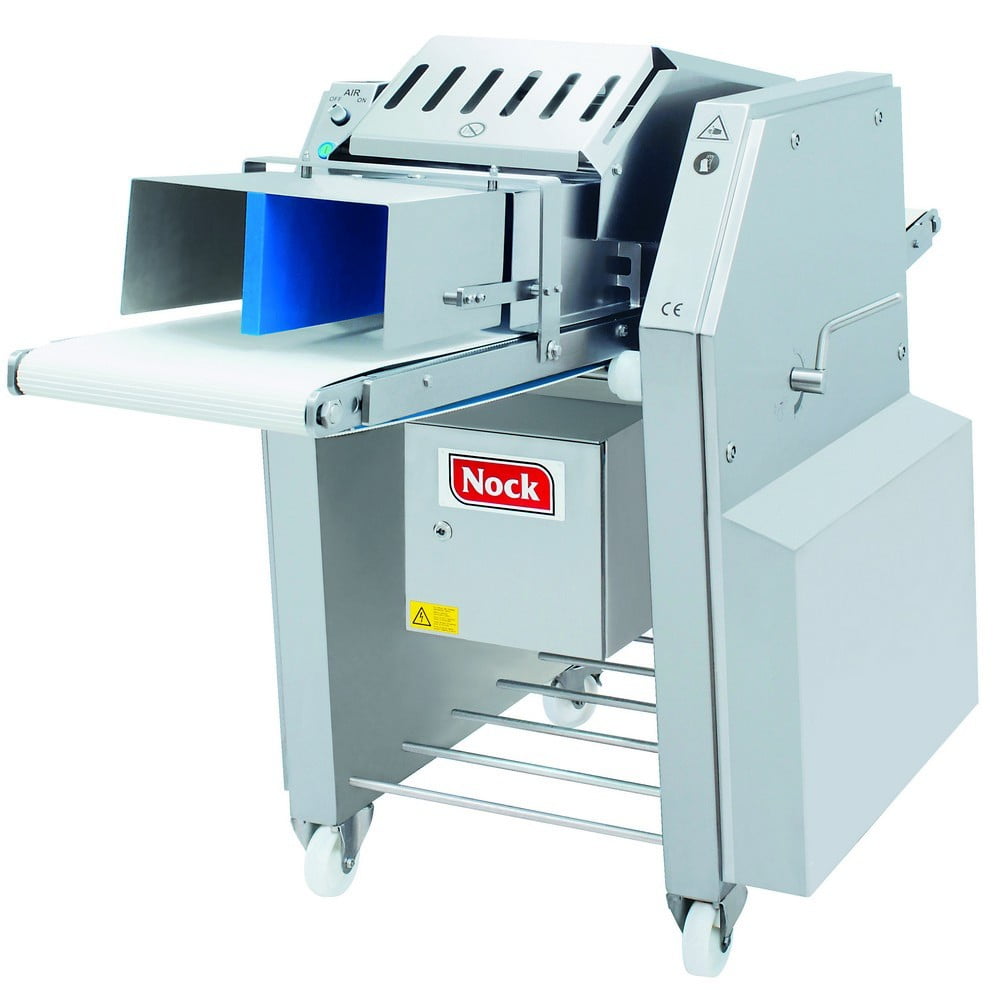

Nock Cortex CBP 496 Vario
|
2 x 160 mm / 2 x 180 mm |
24 m/min |
W x H x D – 800 x 1250 x 2700 mm / 965 x 1190 x 2230 mm |
265 kg / 320 kg |
5 < p < 10 bar plug coupling DN 7.2 (G1/4 external) |
|

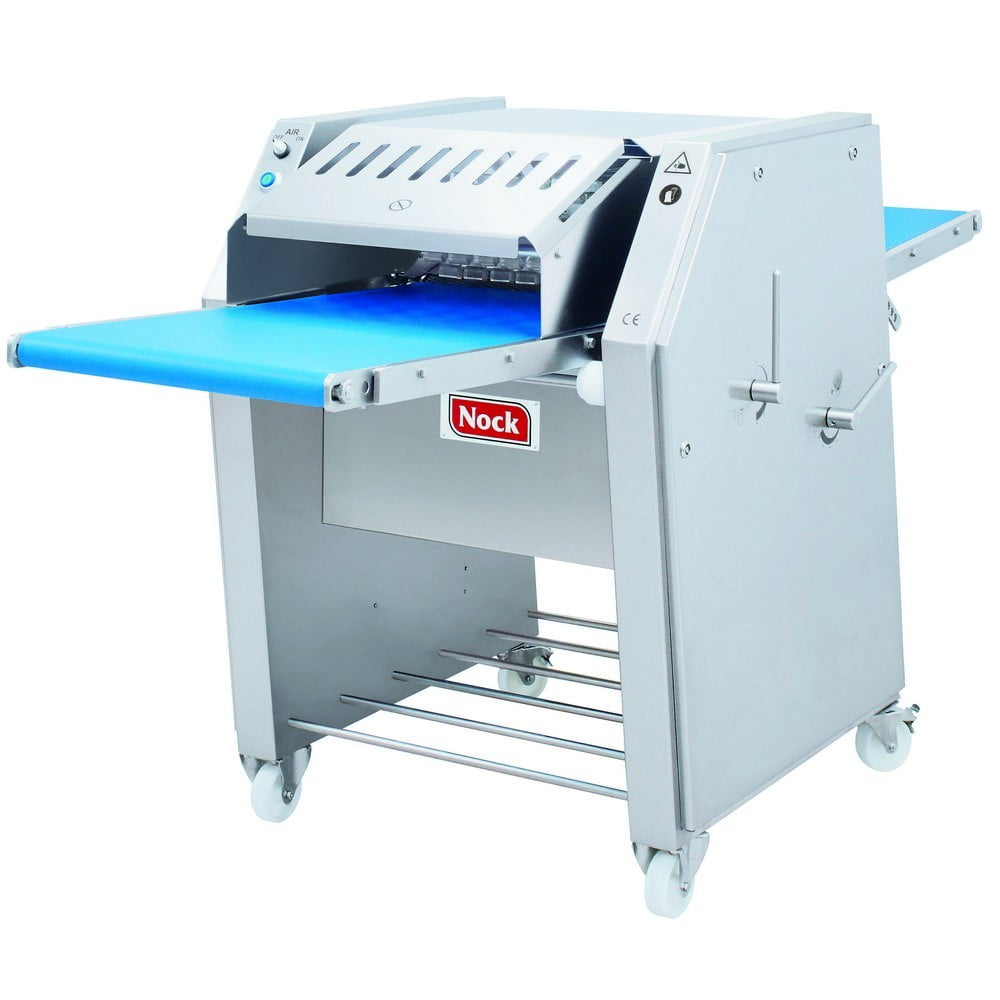

Nock Cortex CBP 695
|
430 mm / 600 mm |
24 m/min |
W x H x D 800 x 1190 x 1860 mm / 965 x 1190 x 2280 mm |
240 kg / 300 kg |
5 < p < 10 bar plug coupling DN 7.2 (G1/4“ external) |
|

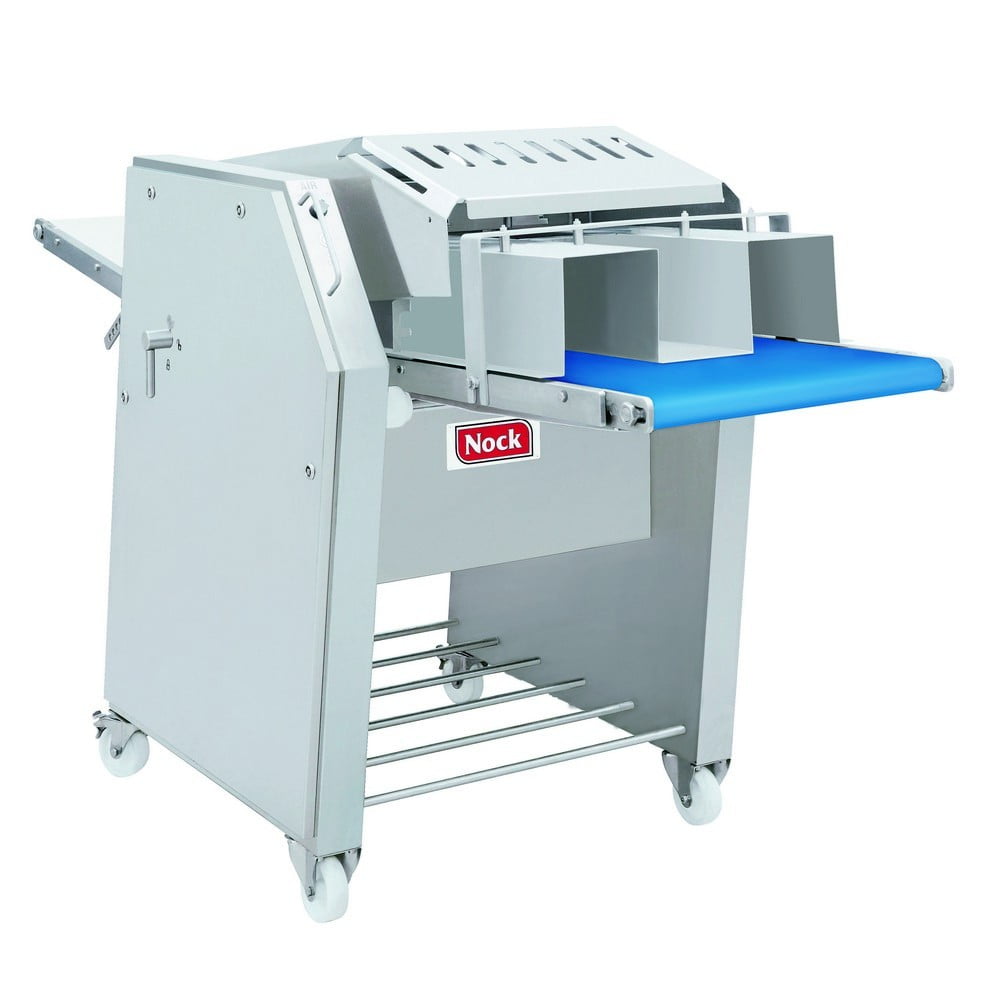

Nock Cortex CBP 695 Vario
|
2 x 160 mm / 2 x 180 mm |
24 m/min |
W x H x D – 800 x 1250 x 2700 mm / 965 x 1190 x 2230 mm |
265 kg / 320 kg |
5 < p < 10 bar plug coupling DN 7.2 (G1/4 external) |
Cutting Edge & German manufacturer, NOCK GmbH are working together to provide an exclusively developed range of machines. Following extensive research and development, this fresh partnership combines 25 years of German engineering excellence with Cutting Edge’s 25 years of experience in delivering sharp, innovative and reliable services.
