    Nock Cortex CB 435/4E HVC Horizontal & Vertical Slicer

    • Nock Cortex CB 435/4E HVC Horizontal & Vertical Slicer
    • Nock Cortex CB 435/4E HVC Horizontal & Vertical Slicer

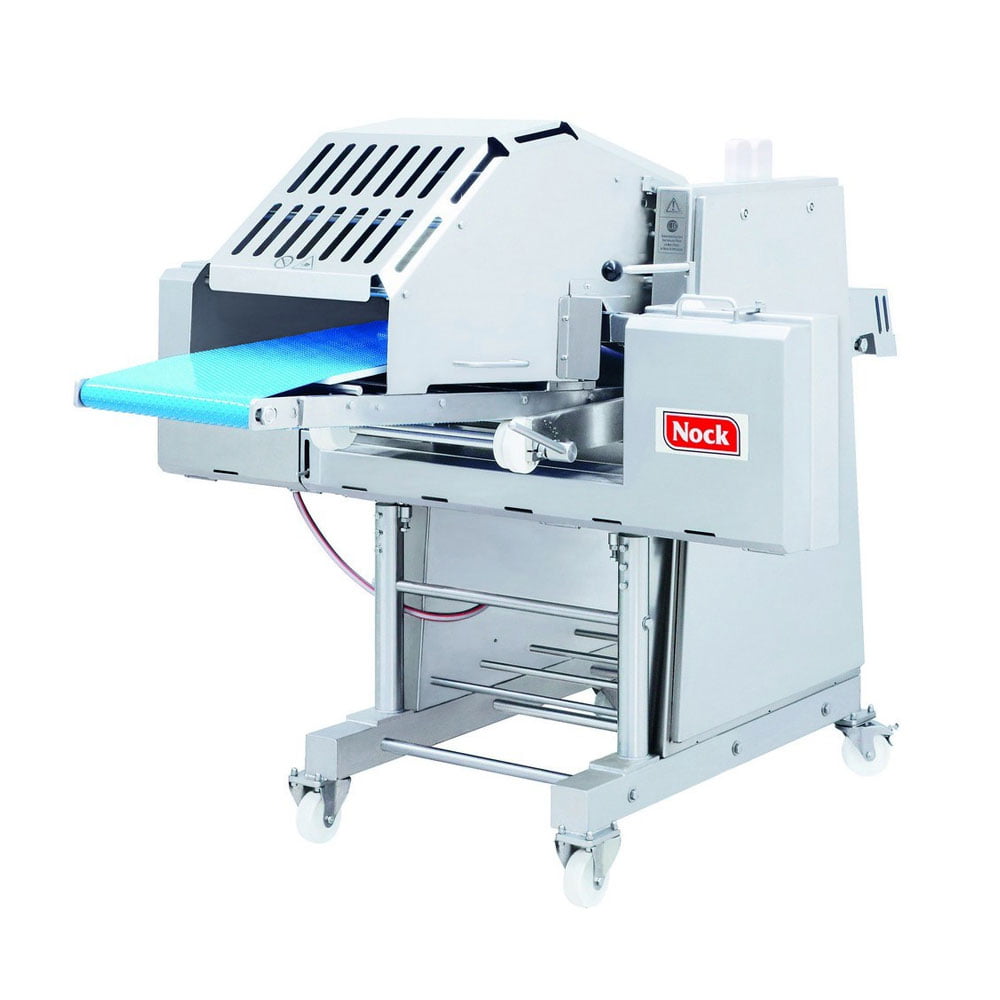

    Nock Cortex CB 435/4E HVC Horizontal & Vertical Slicer

    The Nock Cortex CB 435/4E HVC Horizontal Vertical Slicing Machine provides excellent cutting quality with a highly versatile multi-directional cutting mechanism. The CB 435/4E HVC Slicing Machine can perform multiple vertical slices and a horizontal cut for finely dicing a wide range of products including strips of chicken, turkey, fish fillets and sushi.
    The multi-directional slicing machine can also perform vertical or horizontal slicing alone to suit your exact production requirements. The CB 435/4E HVC also features an intersection roller with a quick change system and does not require any water or compressed air to operate, making the machine easy to configure and fit into any existing production line.

    The machine is completed with NOCK’s exclusive Power Plate® technology. This innovative construction allows the removal of the conveyor in seconds without specialised tools, making cleaning, servicing and general maintenance of the machine fast and simple for any operator.

    Item Code: 75NO-CB435-7E

    Technical Information

    Blade Diameter Max. Throughput Height Operational Width circular blade conveyor belt width Maximum throughput width Conveyor belt speed Min. blade distance Available circular blade distance grids Overall dimension Weight Motor Performance Electrical Connection Compressed air

    200 mm

    70 mm

    band blade 380 mm

    max.300 mm

    370 mm

    410 mm

    25 m/min

    6 mm (depending on product)

    6 – 7 – 8 – 9 – 10 – 11 mm





    W x H x D 1520 x 1530 x 2420 mm



    385 kg (with 8 mm blade distance)





    1.1 kW

    3 AC – 400 V – 50 Hz IEC 60309 16 A 6h other voltages upon request

    not required

    NOCK - German Engineering, Developed for the UK

    Cutting Edge & German manufacturer, NOCK GmbH are working together to provide an exclusively developed range of machines. Following extensive research and development, this fresh partnership combines 25 years of German engineering excellence with Cutting Edge’s 25 years of experience in delivering sharp, innovative and reliable services.
