    Nock Cortex CB 435/4E Compact Slicer

    • Nock Cortex CB 435/4E Compact Slicer
    • Nock Cortex CB 435/4E Compact Slicer

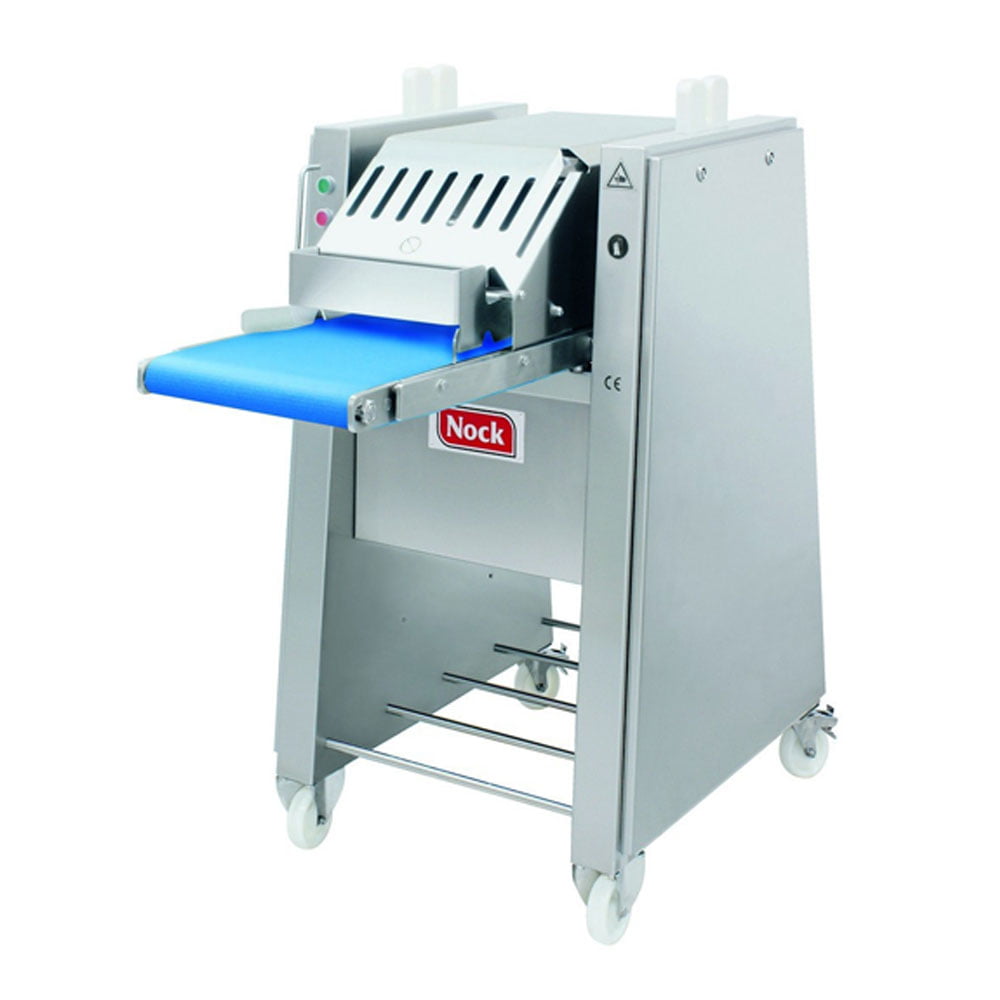

    Nock Cortex CB 435/4E Compact Slicer

    The Nock Cortex CB 435/4E Compact Slicing Machine offers excellent quality slicing for a wide variety of boneless products including steaks, pork belly, fish and poultry fillets. The CB 435/4E Slicer compact design is completed with a durable safety cover for total operator protection and a simple blade shaft lift-out mechanism for quick and easy blade changes.
    The machine features a high-speed circular cutting blade which delivers extremely precise and efficient cutting results with a conveyor speed of up to 18 m per minute. The blade cutting distance can easily be adjusted with a stepped mechanism for complete cutting control.

    The machine is completed with NOCK’s exclusive Power Plate technology. This innovative construction allows the removal of the conveyor in seconds without specialised tools, making cleaning, servicing and general maintenance of the machine fast and simple for any operator.

    Item Code: 75NO-CB435-4E

    Technical Information

    Blade Diameter Max. Throughput Height Blade Equipment Conveyor Belt Width Max Throughput Width Conveyor Speed Min. Blade Distance Available Blade Distance Grids Overall Dimension W x H x D Weight Motor Performance Compressed Air

    200 mm

    40 mm respect. 70 mm

    max. 300 mm

    370 mm

    410 mm

    18 m/min

    6 – 8 mm (depending on the product)

    6 – 7 – 8 – 9 – 10 – 11 mm



    700 x 1190 x 1250 mm (without discharge conveyor)
    700 x 1190 x 1720 mm (with discharge conveyor)





    200 kg (with a 8 mm blade distance, without discharge conveyor)
    220 kg (with a 8 mm blade distance, with output conveyor)



    1.1 kW electrical connection 3 AC – 400 V – 50 Hz IEC 60309 16 A 6h other voltages upon request





    not required

    NOCK - German Engineering, Developed for the UK

    Cutting Edge & German manufacturer, NOCK GmbH are working together to provide an exclusively developed range of machines. Following extensive research and development, this fresh partnership combines 25 years of German engineering excellence with Cutting Edge’s 25 years of experience in delivering sharp, innovative and reliable services.
