The first bandsaw with a zero-accident track record
The Guardian Bandsaw has been designed from the ground up with a 3D Vision Technology™ safety system, reducing serious injuries in the meat processing industry. Whereas traditional contact sensing only activates after the operator makes contact, the Guardian anticipates injuries and stops them in their tracks. Four cameras constantly monitor the blade for a specific coloured glove, creating a virtual ‘safety zone’. A soon as a glove is detected in the zone, the bandsaw stops before the operator’s hand comes into contact.
The Guardian’s online management software features a reporting dashboard combined with an instant alert and reporting system. This provides a comprehensive view of the bandsaw operation, trigger events, specific user incidents and trends, and blade performance reporting. The easy-to-use system allows your data to be configured in a number of ways to create custom reports. This enables you to look deeply at operational use, the way staff are interacting with the saw and respond to trigger events quickly.
Designed to stop completely in a few milliseconds
Powerful data software to report on incidents
Multi-view camera detection system with video playback
Custom-built braking system
Fast & easy blade replacement
| Series | Blade Size | Blade Speed | Motor | Cutting Capacity |
|---|---|---|---|---|

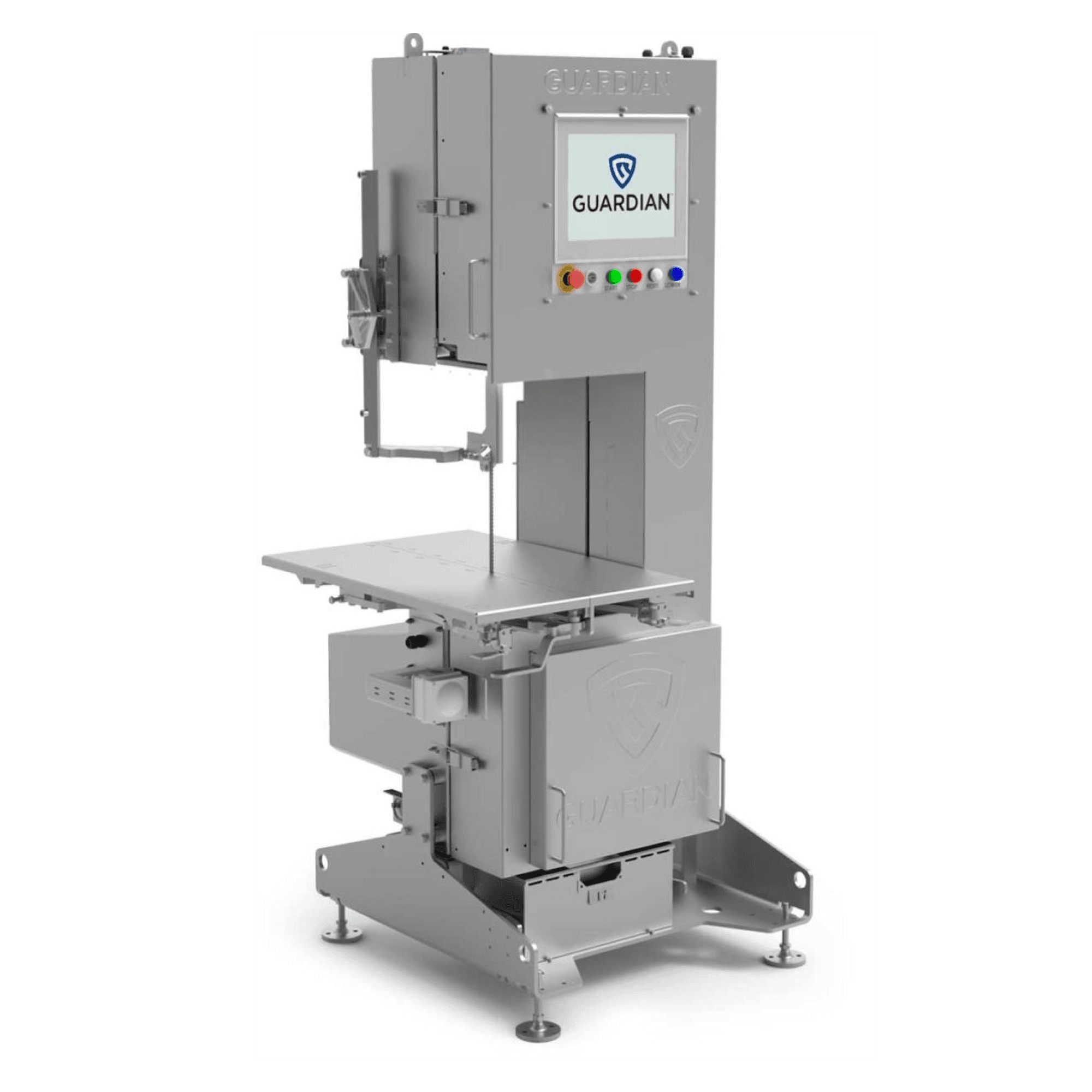

G300 Series | 3873 X 16mm or 152 1/2” X 5/8” | 32m per sec or 105f per sec | 4 KW or 5.5 HP | 600(W) X 475mm(H) or 24”(W) X 18.5”(H) |

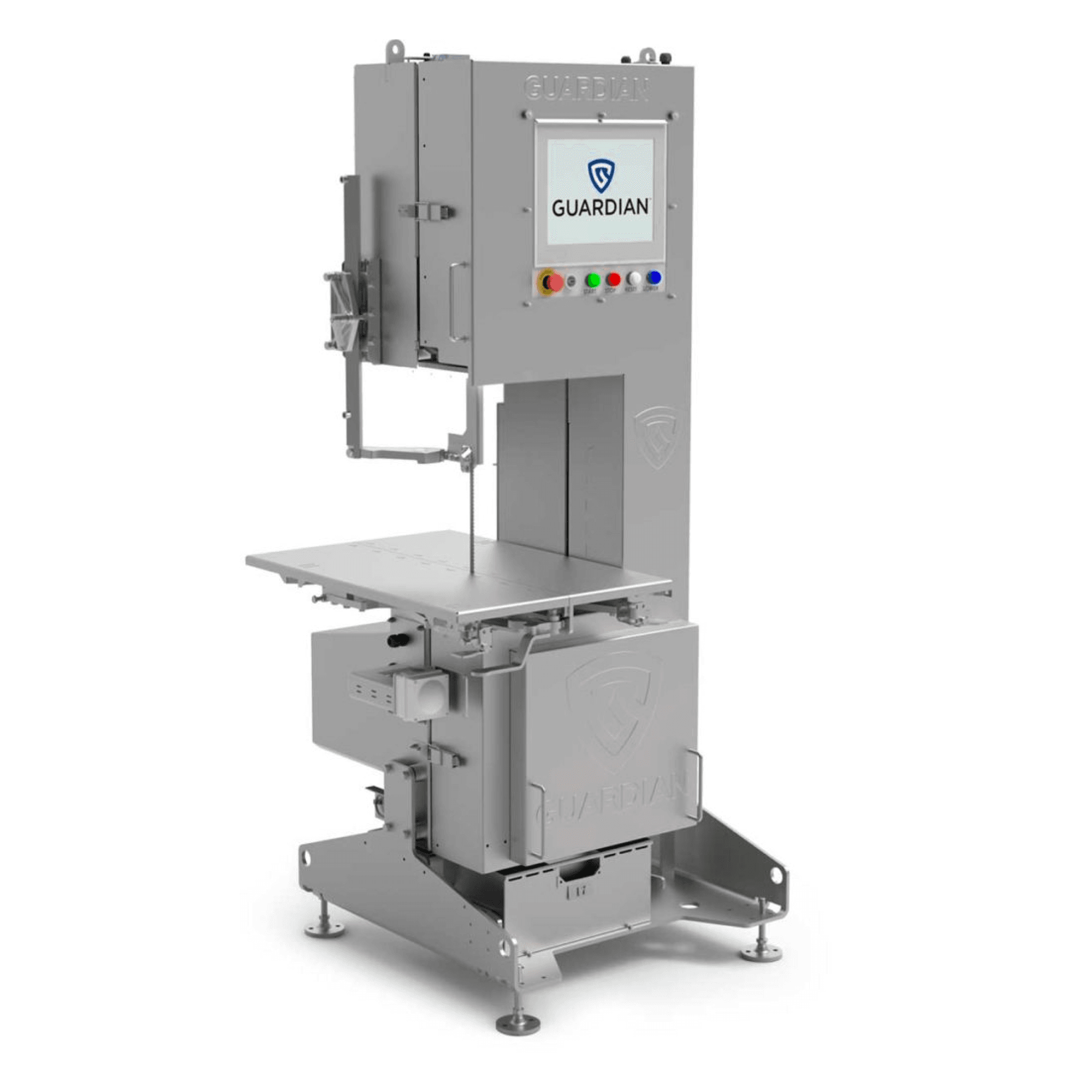

G400 Series | 3873 X 16mm or 152 1/2” X 5/8” | 32m per sec or 105f per sec | 4 KW or 5.5 HP | 407(W) X 407(H) or 16”(W) X 16”(H) |

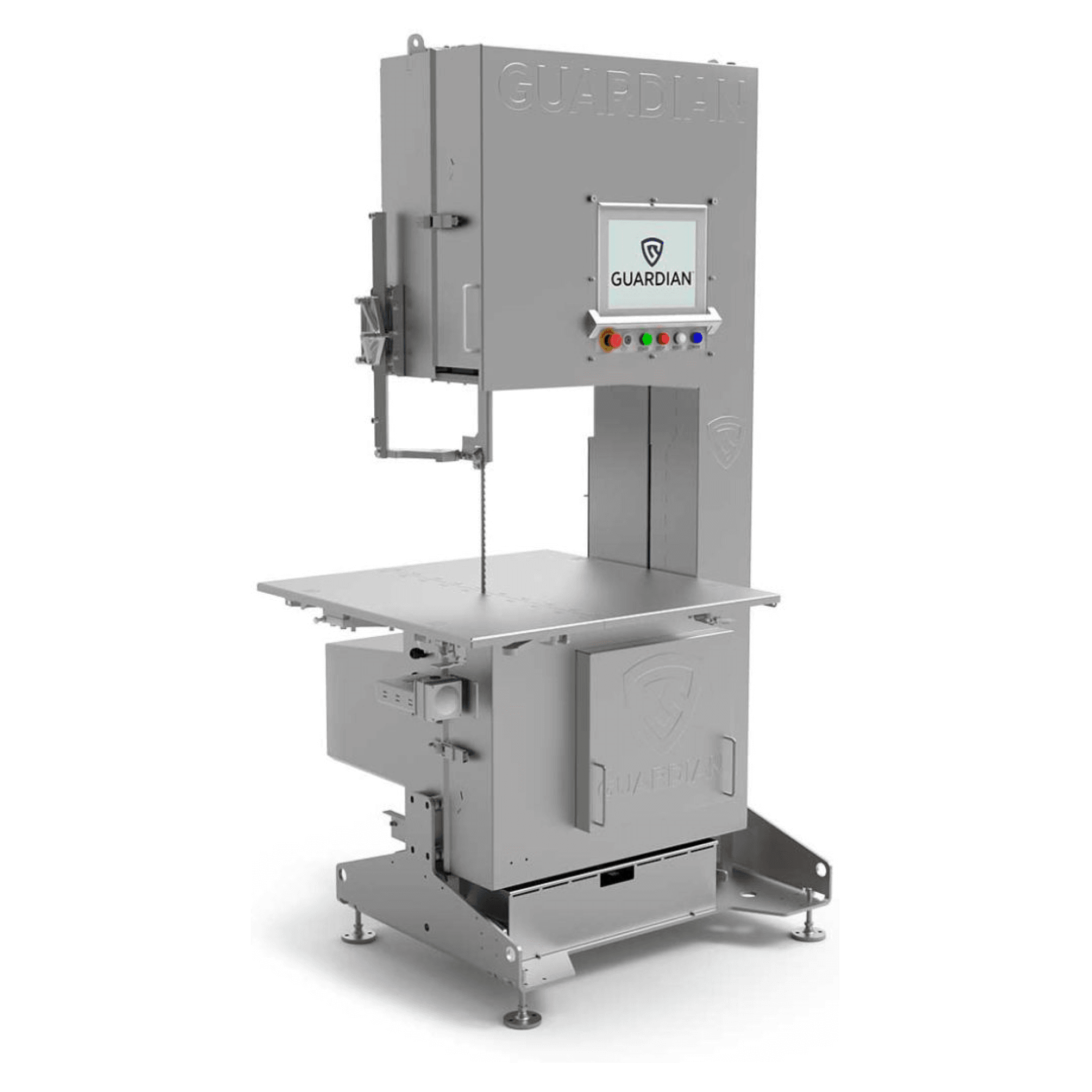

G600 Series | 4900 X 19mm or 193” X 3/4” | Blade Speed | 7.5 KW or 10 HP | 600(W) X 475mm(H) or 24”(W) X 18.5”(H) |

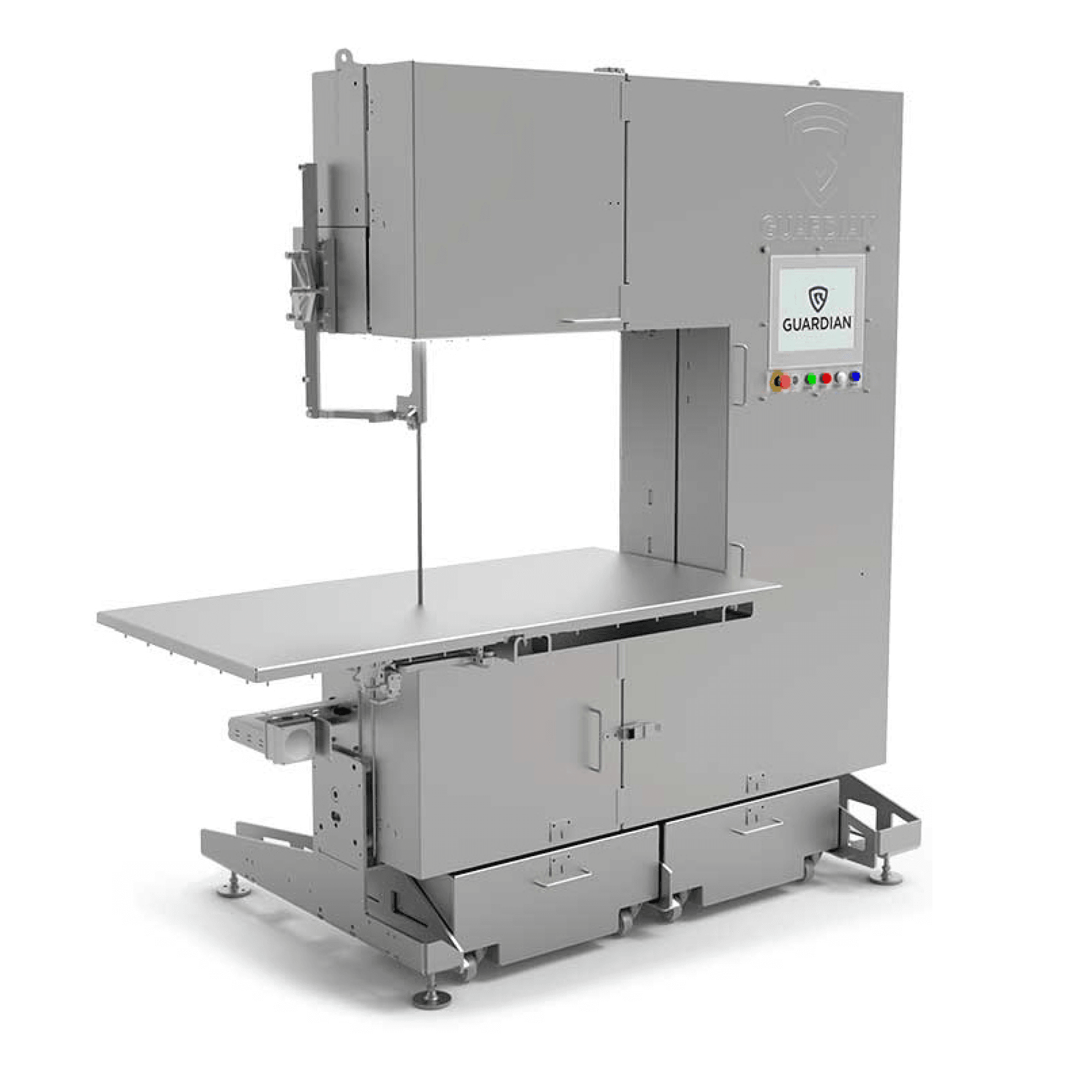

G900 Series | 5486 X 20mm or 216” X 0.8” | 32m per sec or 105f per sec | 7.5 KW or 10 HP | 900(W) X 600mm(H) or 35.4”(W) X 23.6”(H) |
The Guardian Bandsaw delivers an unprecedented safety system to reduce some of the most serious injury risks in the meat processing industry.
Improving safety was a key focus for Auckland Meat Processors (AMP) and the Guardian Bandsaw delivered more than what was expected. The new saw has not only provided a safer workplace, it has helped the team improve their overall bandsaw operation and cutting technique.
