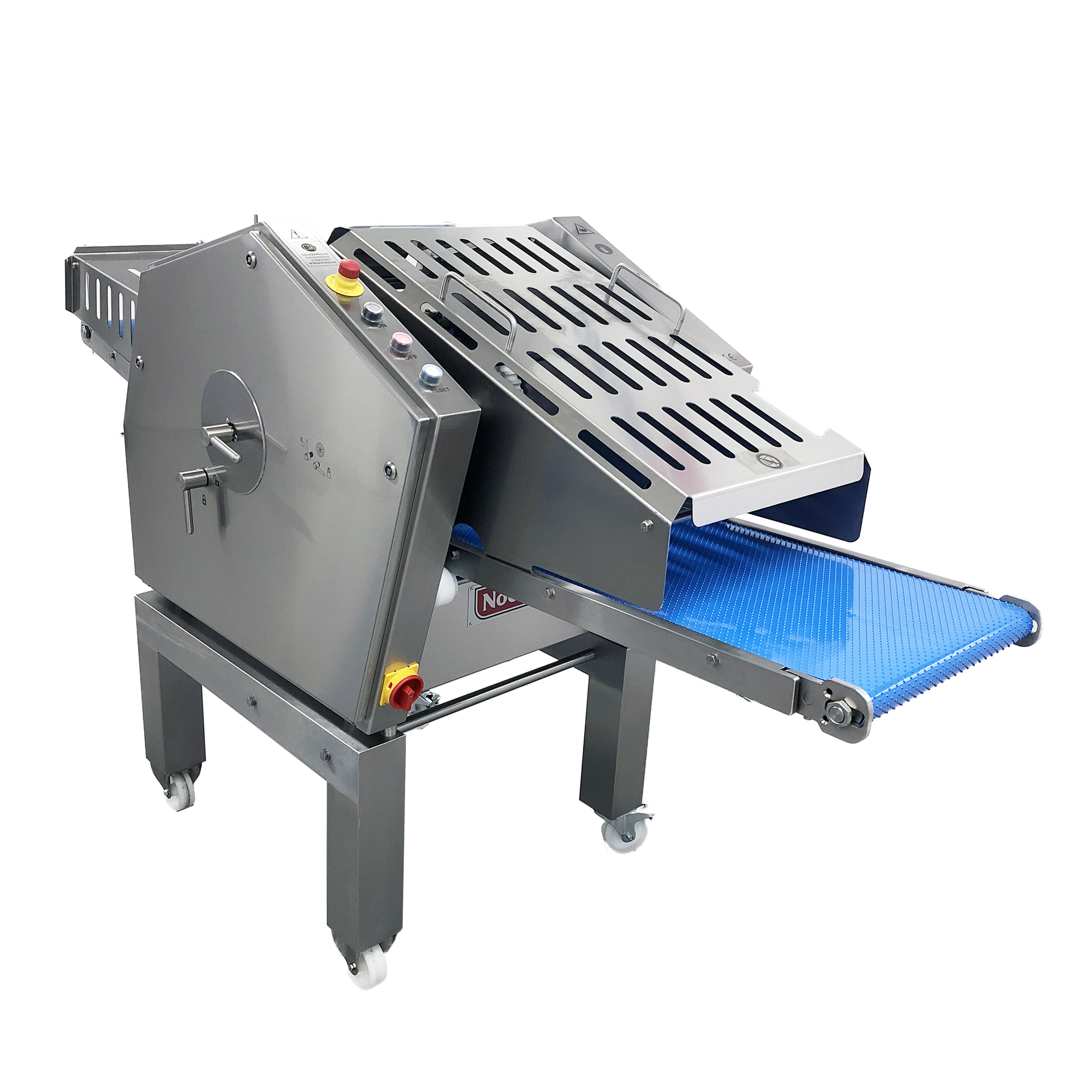

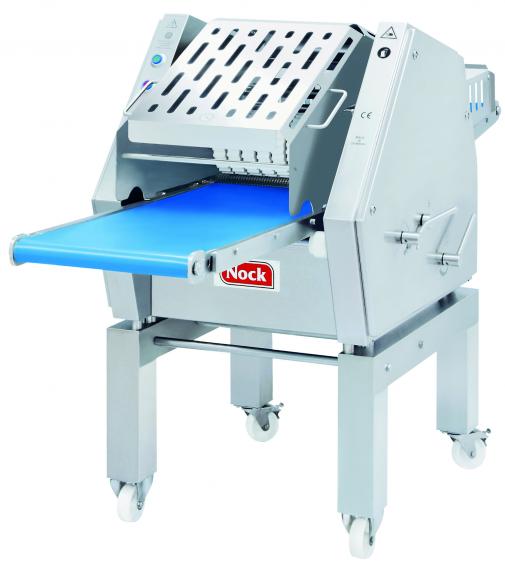

The Nock auto derinding machines are perfect for removing unwanted rind from a full range of pork cuts, requiring minimal time or training to operate and maintain.
These compact, highly-engineered machines are completed with NOCK’s exclusive Power Plate; technology. This innovative construction allows the removal of the conveyor in seconds without specialised tools, making cleaning, servicing and general maintenance of the machine fast and simple for any operator.
Motor performance on all models is 1.1KW
25 years of engineering excellence & superb quality
Expertly designed to be simply efficient & safe
Modular & cost-effective Power Plate® technology
Precision skinning with excellent quality results
| Model | Cutting Width | Cutting Speed | Max T/put Height | Blade Gap | Apply Length Infeed | Overall Dims | Weight |
|---|---|---|---|---|---|---|---|
|
CB 504
|
500mm |
29 m/min |
120 mm |
0 – 5 mm |
520 mm |
865 x 1220 x 2280 mm |
280 kg |
|
CB 604
|
600 mm |
29 m/min |
120 mm |
0 – 5 mm |
520 mm |
965 x 1220 x 2280 mm |
300 kg |
|
CB 704
|
700 mm |
29 m/min |
120 mm |
0 – 5 mm |
520 mm |
1065 x 1220x 2280 mm |
320 kg |
|
CB 519
|
500mm |
31 m/min |
120 mm |
0 – 5 mm |
520 mm |
865 x 1370 x 2260 mm |
310 kg |
|
CB 619
|
600mm |
31 m/min |
120 mm |
0 – 5 mm |
520 mm |
965 x 1370 x 2260 mm |
330 kg |
|
CB 719
|
700mm |
31 m/min |
120 mm |
0 – 5 mm |
520 mm |
1065 x 1370 x 2260 mm |
350 kg |
Cutting Edge & German manufacturer, NOCK GmbH are working together to provide an exclusively developed range of machines. Following extensive research and development, this fresh partnership combines 25 years of German engineering excellence with Cutting Edge’s 25 years of experience in delivering sharp, innovative and reliable services.
