    Mainali Automatic Flaker

    Flakers and Scale Ice Makers

    • Nock-NSH-150-Scale-Ice-Maker
    • Nock-NSH-150-Scale-Ice-Maker

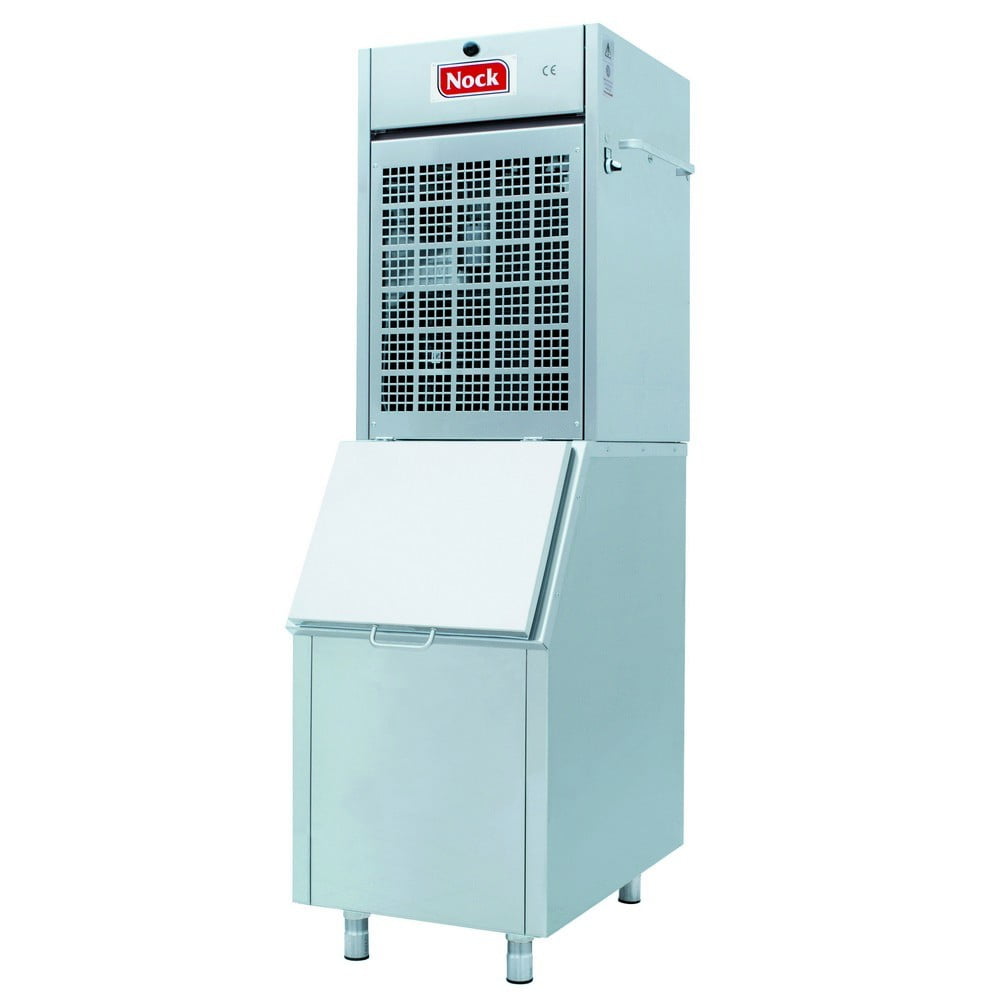

    Nock NSH 150 Scale Ice Maker

    The NOCK scale ice makers differ with known rotating evaporators – and therefore avoid problems such as leakage of refrigerant and ice with germs. The NOCK scale ice makers have a horizontal, stationary freezing disc (evaporator). The water is directly brought onto the disc through a valve and a rotating water distributor from the fresh water supply and scraped off after the freezing process. Unlike other constructions, the NOCK principal is the evaporator (freezing cylinder) rotates, but the scraper. The refrigerant pipes are tightly soldered on the stationary NSH evaporator.

    The NOCK scale ice maker does not have a water storage tank (water bath). The fresh water is frozen directly and leaves the machine in less than one minute as ice scale (flake ice, chip ice) maker with a daily performance of approximately 130 kg scale ice in 24 hours.

    Other features include:

    • Complete machine with evaporator and refrigeration unit
    • Ice temperature approx. minus 88 degrees
    • Thickness of scales approx. 2 mm

    Technical Information

    Ice OutputRefrigerantPermissible Ambient TemperatureDimensionsWeightWater ConnectionElectrical ConnectionPlugElectric Connection

    approx. 130 kg scale ice / 24 hours

    R449A

    Between +5°C and +25°C

    Without stock container for ice 530 x 800 x 560 mm with stock container for ice NEV 100 530 x 1800 x 1000 mm

    without stock container for ice 90 kg with stock container for ice NEV 100 160 kg

    ¾“ external thread

    1 PN – 230 V – 50 Hz

    CEE 7/4 (type F)

    0.6 kW

    NOCK - German Engineering, Developed for the UK

    Cutting Edge & German manufacturer, NOCK GmbH are working together to provide an exclusively developed range of machines. Following extensive research and development, this fresh partnership combines 25 years of German engineering excellence with Cutting Edge’s 25 years of experience in delivering sharp, innovative and reliable services.
